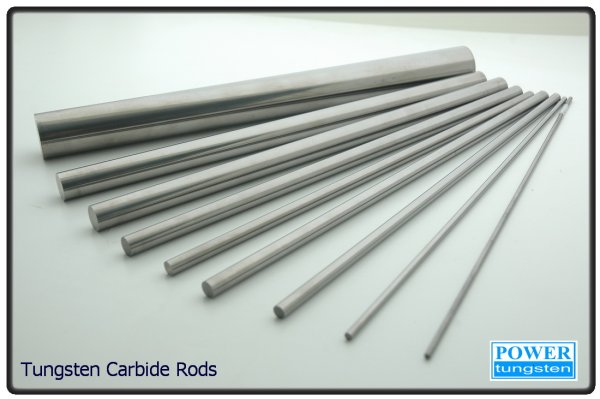

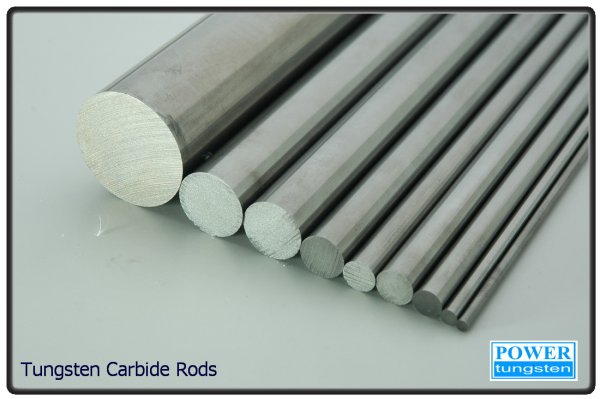

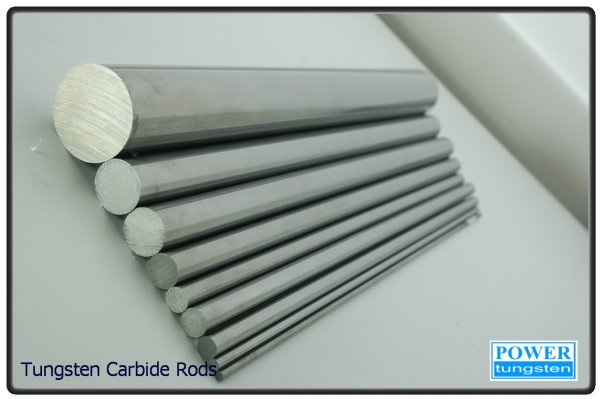

Power tungsten is supply for superior carbide rods. Our advanced pressing and shaping systems give us the flexibility to offer numerous grades and sizes of rods, materials with maximum mechanical properties. We stock ungrounded, utility ground rods that are pressing and shaping, without pits and flaws. Our ground rods are available in both standard and precision-ground finishes, and we supply ground and unground rod in 2.0 - 38.5 mm. diameter and larger- up to 320 mm. in length. All of our rods are mechanically and/or hydrostatically pressed, and rods in 10% and 12% micro grain are available in stock.
Properties & Application of Main Grades
H10F Extra-fine grain Cemented Carbide Grade for Rotary Tools
H10F is recommended for solid carbide rotary tool applications in the ISO K20/K30 range.
It has special advantages where high toughness and sharp edge profiles are needed.
Applications
Grade H10F grade has an exceptionally wide application range and is recommended for: • Low cutting speeds, high feed rates (HSS range),interrupted cutting. • End mills, Drills, Routers and Burs. • The machining of steels, cast iron; stainless and heat resistant steel; nickel based and titanium aerospace alloys.
H12F
Cemented carbide grade has been developed to improve productivity in troublesome and demanding endmilling operations.
This new grade maintains the same tungsten carbide grain size as our widely used H10F but has a slightly greater cobalt content which gives it greater edge toughness in those operations requiring better edge security and reliability.
The wear resistance of H12F in the absence of chipping is rather similar to that of H10F which means that its improved toughness brings little or no wear resistance penalty.
Applications
• Rough endmilling with wavy or gashed edge swarf splitting geometries. • High production rough endmilling of soft or toughened steel, but not recommended for fully hardened steel. • Secure milling of austenitic stainless. • Safe alternative for titanium and solution treated nickel alloys. • Secure in full width slot milling
UNGROUND RODS AVAILABLE SIZE
ITEM DESCRIPTION(DIAMETER/LENGTH)
1
RD SR 0320 3200 EW H10F
STOCK
2
RD SR 0420 3200 EW H10F
STOCK
3
RD SR 0470 3200 EW H10F
STOCK
4
RD SR 0520 3200 EW H10F
STOCK
5
RD SR 0620 3200 DW H10F
STOCK
6
RD SR 0720 3200 DW H10F
STOCK
7
RD SR 0750 3200 CW H10F
STOCK
8
RD SR 0770 3200 DW H10F
STOCK
9
RD SR 0820 3200 DW H10F
STOCK
10
RD SR 0930 3200 CW H10F
STOCK
11
RD SR 1030 3200 CW H10F
STOCK
12
RD SR 1130 3200 CW H10F
STOCK
13
RD SR 1230 3200 CW H10F
STOCK
14
RD SR 1330 3200 CW H10F
STOCK
15
RD SR 1430 3200 CW H10F
STOCK
16
RD SR 1530 3200 CW H10F
STOCK
17
RD SR 1630 3200 CW H10F
STOCK
18
RD SR 1730 3200 CW H10F
STOCK
19
RD SR 1830 3200 CW H10F
STOCK
20
RD SR 1930 3200 CW H10F
STOCK
21
RD SR 2030 3200 CW H10F
STOCK
22
RD SR 2130 3200 CW H10F
STOCK
23
RD SR 2230 3200 CW H10F
STOCK
24
RD SR 2430 3200 CW H10F
STOCK
25
RD SR 2530 3200 CW H10F
STOCK
26
RD SR 2630 3200 CW H10F
STOCK
27
RD SR 2730 3200 CW H10F
STOCK
28
RD SR 2830 3200 CW H10F
STOCK
29
RD SR 2930 3200 CW H10F
STOCK
30
RD SR 3030 3200 CW H10F
STOCK
31
RD SR 3230 3200 CW H10F
STOCK
GROUND RODS AVAILABLE SIZE
ITEM DESCRIPTION(DIAMETER/LENGTH)
1
RD SR 0100 3200 6W H10F
STOCK
2
RD SR 0200 3200 6W H10F
STOCK
3
RD SR 0250 3200 6W H10F
STOCK
4
RD SR 0300 3200 6W H10F
STOCK
5
RD SR 0400 3200 6W H10F
STOCK
6
RD SR 0500 3200 6W H10F
STOCK
7
RD SR 0550 3200 6W H10F
STOCK
8
RD SR 0600 3200 6W H10F
STOCK
9
RD SR 0700 3200 6W H10F
STOCK
10
RD SR 0800 3200 6W H10F
STOCK
11
RD SR 0900 3200 6W H10F
STOCK
12
RD SR 1000 3200 6W H10F
STOCK
13
RD SR 1200 3200 6W H10F
STOCK
14
RD SR 1300 3200 6W H10F
STOCK
15
RD SR 1400 3200 6W H10F
STOCK
16
RD SR 1500 3200 6W H10F
STOCK
17
RD SR 1600 3200 6W H10F
STOCK
18
RD SR 1700 3200 6W H10F
STOCK
19
RD SR 1800 3200 6W H10F
STOCK
20
RD SR 1900 3200 6W H10F
STOCK
21
RD SR 2000 3200 6W H10F
STOCK
22
RD SR 2100 3200 6W H10F
STOCK
23
RD SR 2400 3200 6W H10F
STOCK
24
RD SR 2500 3200 6W H10F
STOCK
25
RD SR 2600 3200 6W H10F
STOCK
26
RD SR 2700 3200 6W H10F
STOCK
27
RD SR 2900 3200 6W H10F
STOCK
28
RD SR 3850 3200 6W H10F
STOCK
For more information of Tungsten Carbide Rods, grade and stock, please check at our sales office.
